14.95 USD

The Parts manual what will be send to you will contain all the necessary needed information to get the parts for all the repairs for your bike from front to the back .

The same Parts manual is used by your garage or workshop to repair your Bike.

So you could save you a lot of money with this Parts manual, it will give you all the information what is needed to get the right Parts so that your bike would be in 100% condition..



CONTENTS OF THE MANUAL

FIG 01 CYLINDER, CYLINDER HEAD FIG 23 SEAT

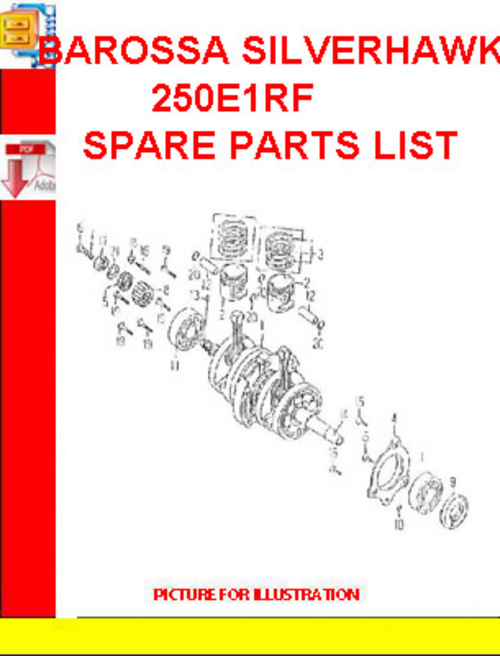

FIG 02 CRANKSHAFT PISTON FIG 24 FRONT WHEEL
FIG 03 OIL PUMP FIG 25 FRONT BRAKE
FIG 04 CARBURETOR FIG 26 REAR WHEEL
FIG 05 VALVE FIG 27 TRANSMISSION STARTER
FIG 06 CAM CHAIN TENSIONER FIG 28 GEAR CASE
FIG 07 CRANKCASE FIG 29 GEAR SHIFT
FIG 08 LEFT CRANKCASE COVER FIG 30 REVERSE GEAR LEVER
FIG 09 RIGHT CRANKCASE COVER FIG 31 REAR BRAKE
FIG 10 TRANSMISSION STARTER FIG 32 STEERING HANDLE CABLE
FIG 11 STARTING MOTOR FIG 33 HANDLE SWITCH
FIG 12 GEAR SHIFT FIG 34 STAND FOOTREST
FIG 13 CLUTCH FIG 35 GUARD
FIG 14 EXHAUST MUFFLER FIG 36 HEAD LIGHT
FIG 15 REAR ARM FIG 37 TAIL LIGHT
FIG 16 REAR SUSPENSION FIG 38 WIRE HARNESS
FIG 17 FRAME FIG 39 SPEEDOMETER
FIG 18 FRONT SUSPENSION FIG 40 WARNING
FIG 19 STEERING FIG 41 CARRIER REAR
FIG 20 FUEL TANK FIG 42 GEAR SPEEDOMETER
FIG 21 FRONT FENDER FIG 43 OIL COOLING SET
FIG 22 SIDE COVER FIG 44 NUMERICAL INDEX

---

Keywords: barossa silverhawk 250e1rf spare parts l
File Size: 2062 KBytes
